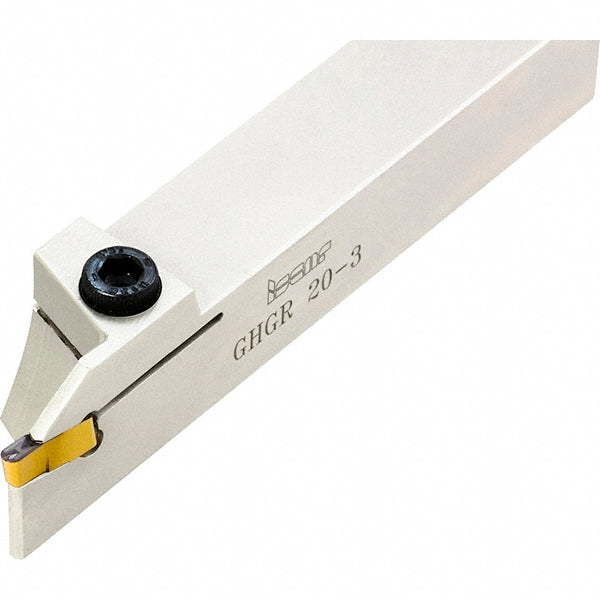

Indexable Grooving - Iscar 2800263

Iscar

Indexable Grooving - Iscar 2800263

MFR# 2800263Series Cut Grip

$185.93List $192.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800263 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.7362
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIM 3; GIM 3.2; GIM 3C; GIM 3J; GIM 4; GIM 4C; GIM 4J
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length (mm)36.00
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7874
Maximum groove width0.1575
Minimum groove width0.1181
Overall length4.7244
Shank height0.7874
Shank length (mm)84.00
Shank width diameter0.7874
StandardsISO 13399
Toolholder styleGHG
