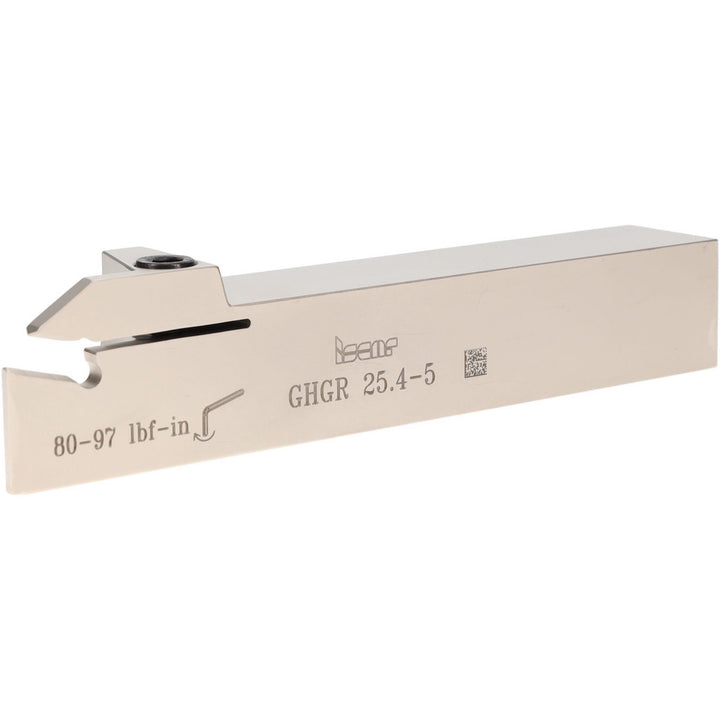

Indexable Grooving - Iscar 2800269

Iscar

Indexable Grooving - Iscar 2800269

MFR# 2800269Series Cut Grip

$206.18List $212.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800269 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9200
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIF 4.78-0.55; GIF 4.86-0.30; GIF 5.00E-0.40; GIF 5.00E-0.60; GIF 5.00E-0.80; GIF 5.28-0.20; GIF 5.39-0.20; GIF 5.90-0.20; GIF 6.00E-0.40; GIF 6.00E-0.80; GIM 5C; GIM 6C; GIMF 502; GIMF 508; GIMF 605; GIMF 608; GIP 5.00-0.40; GIP 6.00-0.40; GIP 6.00-0.80
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length1.6000
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.0000
Maximum groove width0.2500
Minimum groove width0.1850
Overall length6.0000
Shank height1.0000
Shank length4.4000
Shank width diameter in1
StandardsISO 13399
Toolholder styleGHG
