Iscar

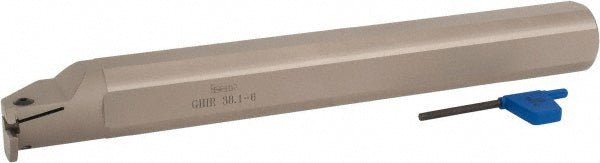

Indexable Grooving - Iscar 2800360

MFR# 2800360Cat# GHIR 38.1-6Series Cut Grip

$503.87List $520.30 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800360 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Center to cutting edge1.0600

Compatible insert size codeGIFI; GIFI-E; GIFI-E (Full Radius); GIMIY; GINI-E; GIPI; GIPI (Full Radius WM); GIPI (Full Radius); GIPI-E; GIPI-RX/LX; TIPI-MT; TIPI-WT

Coolant throughNo

Cutting directionRight Hand

Hand of holderRight Hand

Insert compatibilityGIFI..; GIMY..; GINI..; GIPI..; TIPI..

Insert holding methodClamp

Manufacturers catalog numberGHIR 38.1-6

Maximum depth of cut0.3150

Maximum groove width0.2520

Minimum groove width0.1570

Minimum hole diameter1.8500

Msc manufacturer numberGHIR/L 38.1-6

Multi use toolNo

Overall length12.0000

Primary workpiece materialUniversal

Shank width diameter1.5000

StandardsISO 13399

Toolholder styleGHI; GHIR

Toolholder typeNon-Face Grooving
