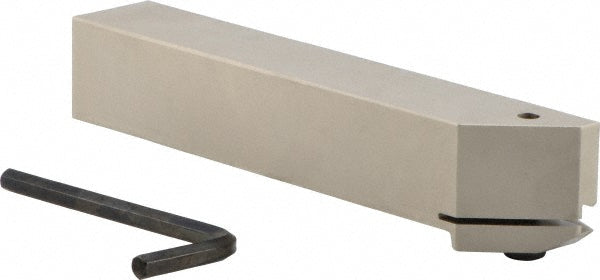

Indexable Grooving - Iscar 2800410

MFR# 2800410Series Cut Grip

$196.59List $203.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800410 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9400
Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius ); GIP (Full
Complete insert compatibilityGIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.23-0.10; GIF 5.00E-0.40; GIF 5.00E-0.60; GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.4; GIM 3; GIM 3.2
Coolant throughNo
Hand of holderLeft Hand
Head length in1
Insert compatibilityGI..
Insert holding methodClamp
Maximum depth of cut0.1890
Maximum groove width in1/4
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length in5
Toolholder styleGHM
Toolholder typeExternal Grooving
