Iscar

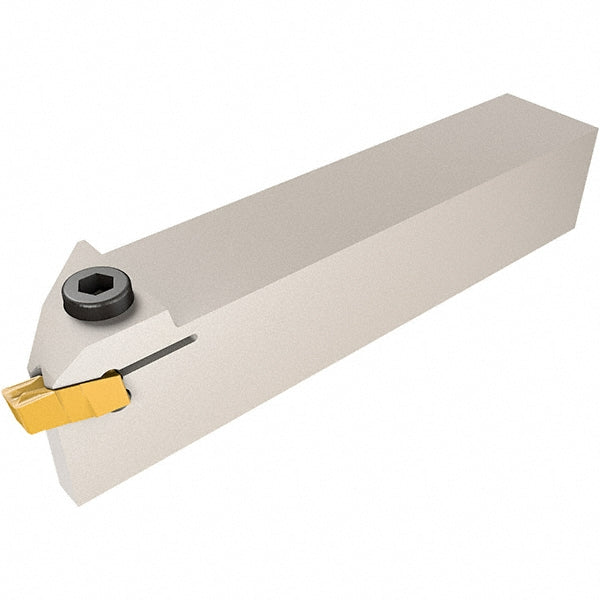

Indexable Grooving - Iscar 2800421

MFR# 2800421Series Cut Grip

$171.70List $177.30 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800421 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.23-0.10; GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.4; GIM 3; GIM 3.2; GIM 3C; GIM 4; GIM 4C

Coolant throughNo

Cutting directionLeft Hand

Hand of holderLeft Hand

Head length0.6690

Insert compatibilityGI..

Insert holding methodClamp

Internal or externalExternal

Maximum depth of cut0.1890

Maximum groove width0.1890

Multi use toolYes

Overall length4.3307

Primary workpiece materialUniversal

Shank height0.6299

Shank length3.6617

Shank width diameter0.6299

StandardsISO 13399

Toolholder styleGHMP

Toolholder typeNon-Face Grooving

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
