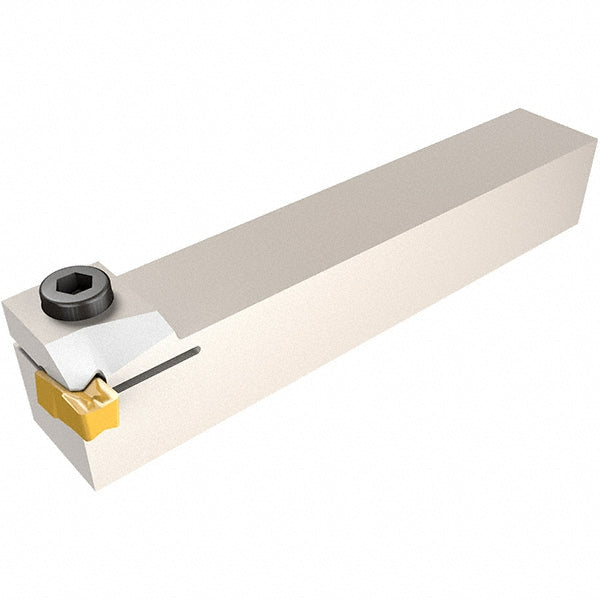

Indexable Grooving - Iscar 2800439

MFR# 2800439Series Cut Grip

$162.49List $167.80 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800439 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.4252

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.40; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.23-0.10; GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.4; GIM 3; GIM 3.2; GIM 3C; GIM 4; GIM 4C

Coolant throughNo

Cutting directionRight Hand

Hand of holderRight Hand

Head length (mm)25.00

Insert compatibilityGI..

Insert holding methodClamp

Internal or externalExternal

Maximum depth of cut0.1890

Maximum groove width0.1890

Multi use toolYes

Overall length4.3307

Primary workpiece materialUniversal

Shank height0.4724

Shank length (mm)85.00

Shank width diameter0.4724

StandardsISO 13399

Toolholder styleGHM

Toolholder typeNon-Face Grooving
