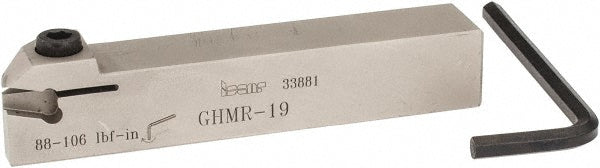

Indexable Grooving - Iscar 2800445

Iscar

Indexable Grooving - Iscar 2800445

MFR# 2800445Series Cut Grip

$198.49List $201.40 Save 1%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800445 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.6900
Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length0.9800
Insert compatibilityGI.., GPV.., TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.1890
Maximum groove width in1/4
Minimum groove width0.2500
Multi use toolNo
Overall length4.4000
Primary workpiece materialUniversal
Shank height0.7500
Shank length4.4000
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleGHMR
Toolholder typeNon-Face Grooving
