Iscar

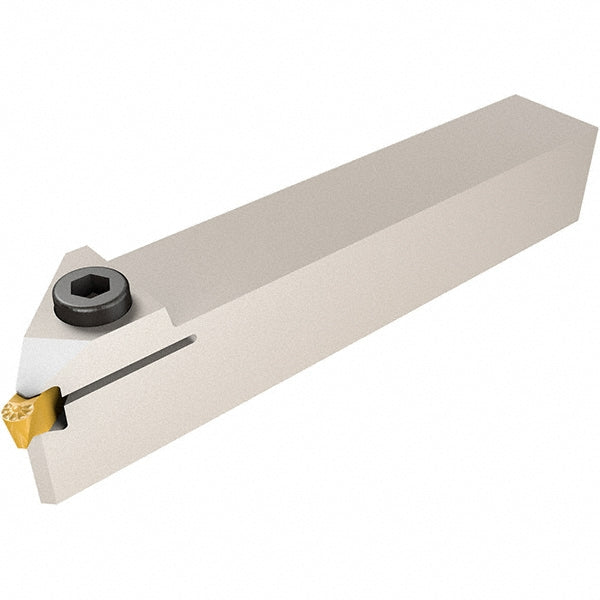

Indexable Grooving - Iscar 2800467
MFR# 2800467Series Cut Grip
$206.18List $212.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800467 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge1.1300
Compatible insert size codeGIMY-UN; GIP-UN
Complete insert compatibilityGIF 5.00E-060-30D; GIF 5.00E-060-30G; GIF 6.00E-080-30D; GIF 6.00E-080-30G; GIMY 315-UN; GIMY 420-UN; GIP 3.00-1.50UN; GIP 3.18-0.20-22D; GIP 3.18-0.20-22G; GIP 4.00-2.0UN
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length in1
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum groove width0.2520
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length in5
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHMU
Toolholder typeNon-Face Grooving
