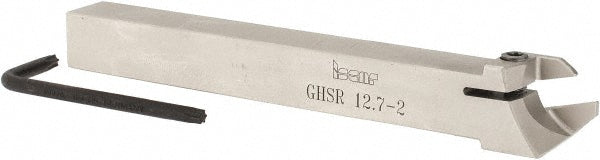

Indexable Grooving - Iscar 2800549

MFR# 2800549Series Cut Grip

$229.60List $237.10 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800549 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.4640

Compatible insert size codeGIG; GIM-J; GIM-J-RA/LA; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP (Full Radius); GIP-E; GIP-E (Full Radius); GIPA (Full Radius W=3-6); GIPA (W=3-6); GIPM-A46/GIP-1250; GIPY; GITM; GITM (Full Radius); TIP-MT; TIP-P-BSPT; TIP-P-

Coolant throughNo

Cutting directionRight Hand

Hand of holderRight Hand

Head length0.7600

Insert compatibilityGIG; GIM; GIP; TIP

Insert holding methodClamp

Insert seat size2

Internal or externalExternal

Maximum depth of cut1.0000

Maximum groove width0.1240

Maximum workpiece diameter1.0000

Minimum groove width0.0870

Msc manufacturer numberGHSR/L 12.7-2

Multi use toolNo

Overall length4.7200

Primary workpiece materialUniversal

Shank height0.5000

Shank length3.9600

Shank width diameter0.5000

StandardsISO 13399

Toolholder styleGHS

Toolholder typeNon-Face Grooving
