Iscar

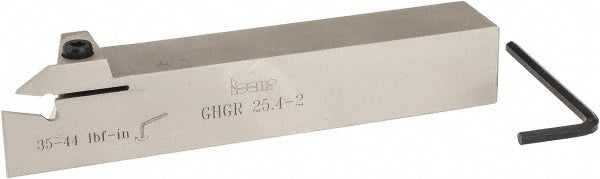

Indexable Grooving - Iscar 2800606
MFR# 2800606Series Cut Grip
$206.18List $212.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800606 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.9700
Compatible insert size codeGIM; GIMF; GIMN; GIMT; GIMY
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.3000
Insert compatibilityGI..,TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.3400
Maximum groove width0.0940
Maximum workpiece diameter1.3400
Minimum groove width0.0160
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length6.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHG
Toolholder typeNon-Face Grooving
