Iscar

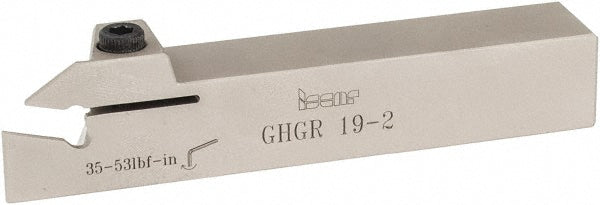

Indexable Grooving - Iscar 2800610
MFR# 2800610Series Cut Grip
$198.49List $201.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800610 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.7200
Compatible insert size codeGIM; GIMF; GIMN; GIMT; GIMY
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.2300
Insert compatibilityGI..,TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.3400
Maximum groove width0.0940
Maximum workpiece diameter1.3400
Minimum groove width0.0160
Msc manufacturer numberGHGR/L 19-2
Multi use toolNo
Overall length4.5000
Primary workpiece materialUniversal
Shank height0.7500
Shank length4.5000
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleGHG
Toolholder typeNon-Face Grooving
