Iscar

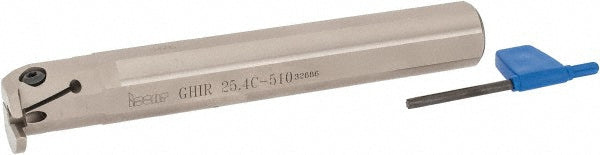

Indexable Grooving - Iscar 2800619
MFR# 2800619Cat# GHIR 25.4C-510Series Cut Grip
$414.52List $420.60
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800619 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.8900
Compatible insert size codeGIFI; GIFI-E; GIFI-E (Full Radius); GIMIY; GINI-E; GIPI; GIPI (Full Radius); GIPI-E; TIPI-MT
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.0000
Insert compatibilityGIFI..; GIMY..; GINI..; GIPI..; TIPI..
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberGHIR 25.4C-510
Maximum depth of cut0.3930
Maximum groove width0.2080
Minimum groove width0.1570
Minimum hole diameter1.2500
Msc manufacturer numberGHIR/L 25.4-4
Multi use toolNo
Overall length7.0000
Primary workpiece materialUniversal
Shank length in6
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHI
Toolholder typeNon-Face Grooving
