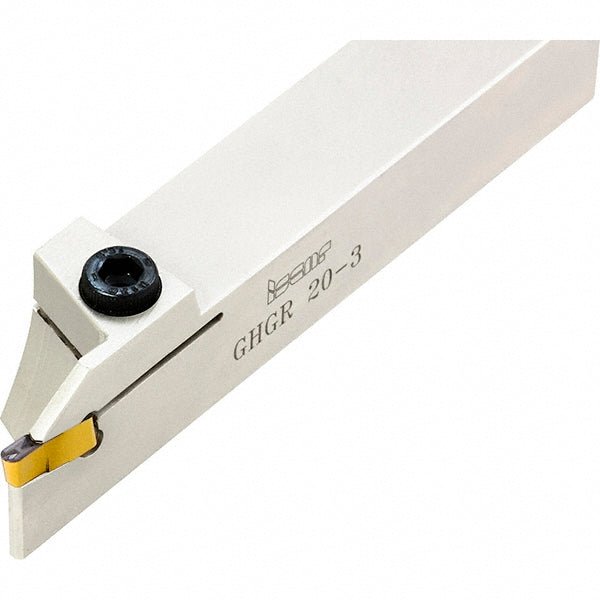

Indexable Grooving - Iscar 2800652

Iscar

Indexable Grooving - Iscar 2800652

MFR# 2800652Series Cut Grip

$206.18List $212.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800652 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge0.8900
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIF 6.00E-0.40; GIF 6.00E-0.80; GIF 6.00E-1.20; GIF 6.35-0.50; GIF 6.35-0.55; GIM 6C; GIMF 605; GIMF 608; GIP 6.00-0.40; GIP 6.00-0.80
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length1.8000
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.1800
Maximum groove width0.2500
Minimum groove width0.2360
Overall length6.0000
Shank height1.0000
Shank length4.2000
Shank width diameter in1
StandardsISO 13399
Toolholder styleGHG
