Iscar

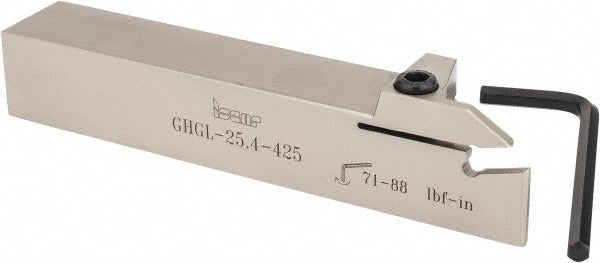

Indexable Grooving - Iscar 2800654
MFR# 2800654Series Cut Grip
$206.18List $212.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800654 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.9300
Compatible insert size codeGIM; GIMF; GIMN; GIMT; GIMY
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.6000
Insert compatibilityGI..,TIP..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut2.0000
Maximum groove width0.2500
Maximum workpiece diameter2.0000
Minimum groove width0.1850
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length6.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHG
Toolholder typeNon-Face Grooving
