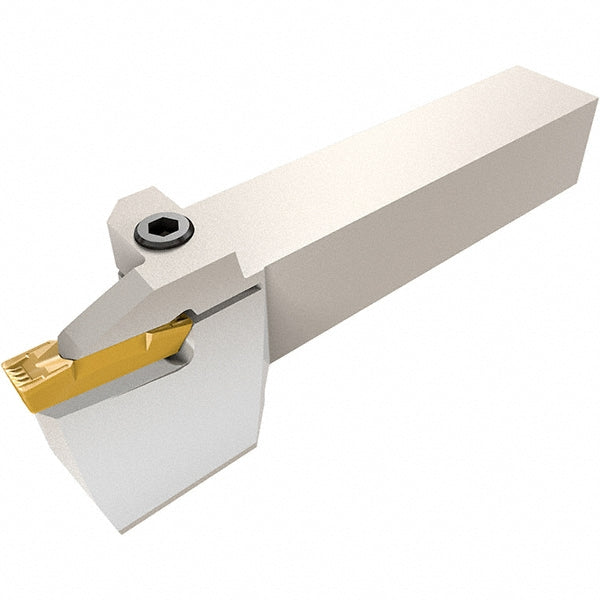

Indexable Grooving - Iscar 2800678

MFR# 2800678Series Cut Grip

$338.27List $349.30 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800678 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.8700
Compatible insert size codeGDMF; GDMM-CC; GDMN; GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GIF-E (W=.315,.394 Full Radius); GIF-E (W=.315,.394); GIFG-E (W=.315); GIPA/GIDA 8 (Full Radius)
Complete insert compatibilityGDMM 7CC; GDMM 8CC; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-0.40; GIF 8.00E-0.80; GIF 8.00E-1.20; GIFG 8.00E-0.80; GIFG 8.00E-1.20
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.6000
Insert compatibilityGDM..; GI.. 8..
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut1.0000
Maximum groove width0.3150
Maximum workpiece diameter3.2300
Minimum groove width0.3150
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.4000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHFG
Toolholder typeNon-Face Grooving
