Iscar

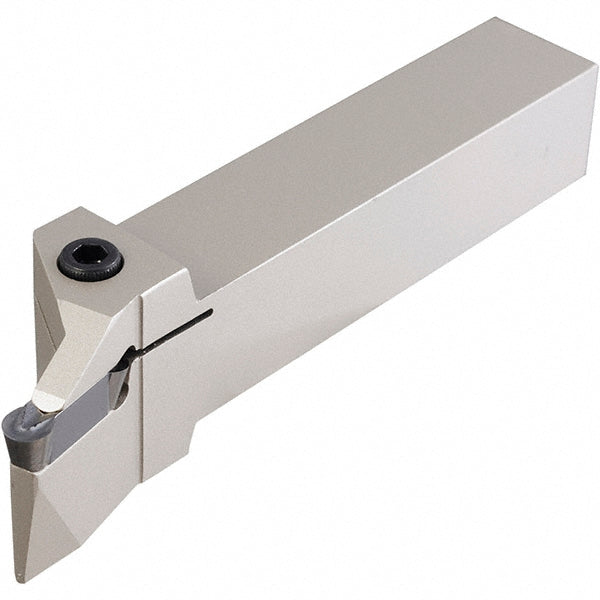

Indexable Grooving - Iscar 2800713
MFR# 2800713Series Cut Grip
$293.62List $303.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800713 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge1.5600
Compatible insert size codeGDMA; GIPA/GIDA 8 (Full Radius)
Complete insert compatibilityGDMA 840; GDMY 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.7300
Insert compatibilityGDM.. 840; GIDA 8..
Insert holding methodClamp
Internal or externalInternal or External
Maximum depth of cut0.7500
Maximum groove width0.3150
Minimum groove width0.3150
Multi use toolYes
Overall length7.0000
Primary workpiece materialUniversal
Shank height1.2500
Shank length5.2700
Shank width diameter1.2500
StandardsISO 13399
Toolholder styleGHDK
Toolholder typeNon-Face Grooving
