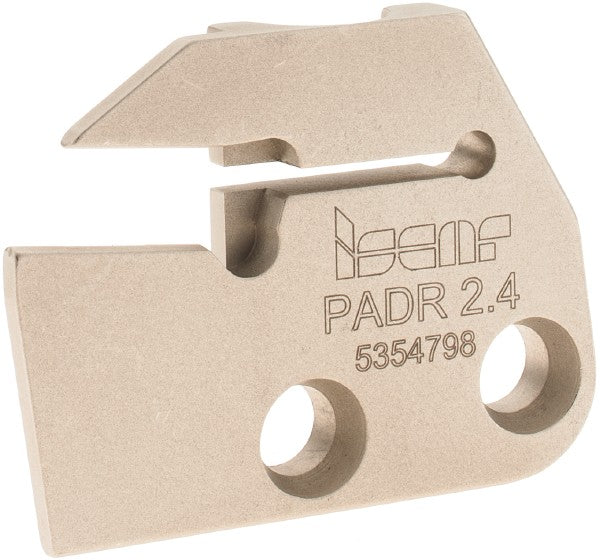

Indexable Grooving - Iscar 2800714
MFR# 2800714Cat# PADR 2.4Series Cut Grip
$154.37List $159.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800714 indexable grooving. Series Cut Grip.
Specifications
Blade height1.1800
Blade stylePAD
Blade width0.0750
Compatible insert styleGDMW 2.4
Complete insert compatibilityGDMW 2.4
Cutting directionRight Hand
Cutting height0.9450
Cutting tool applicationGrooving; Parting; Turning
Insert seat size0.0750
Manufacturers catalog numberPADR 2.4
Maximum depth of cut0.6420
Maximum groove width0.1250
Minimum groove width0.0940
Msc manufacturer number2800714
Overall length1.6140
StandardsISO 13399
