Iscar

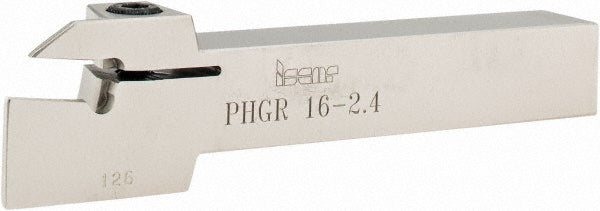

Indexable Grooving - Iscar 2800720
MFR# 2800720Series Cut Grip
$174.74List $177.30
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800720 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.5945
Compatible insert size codeGDMW 2.4
Complete insert compatibilityGDMW 2.4
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.2990
Insert compatibilityGDMW 2.4
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6693
Maximum groove width0.1252
Maximum workpiece diameter1.3386
Minimum groove width0.0945
Multi use toolYes
Overall length4.3307
Primary workpiece materialUniversal
Shank height0.6299
Shank length3.0317
Shank width diameter0.6299
StandardsISO 13399
Toolholder stylePHG
Toolholder typeNon-Face Grooving
