Iscar

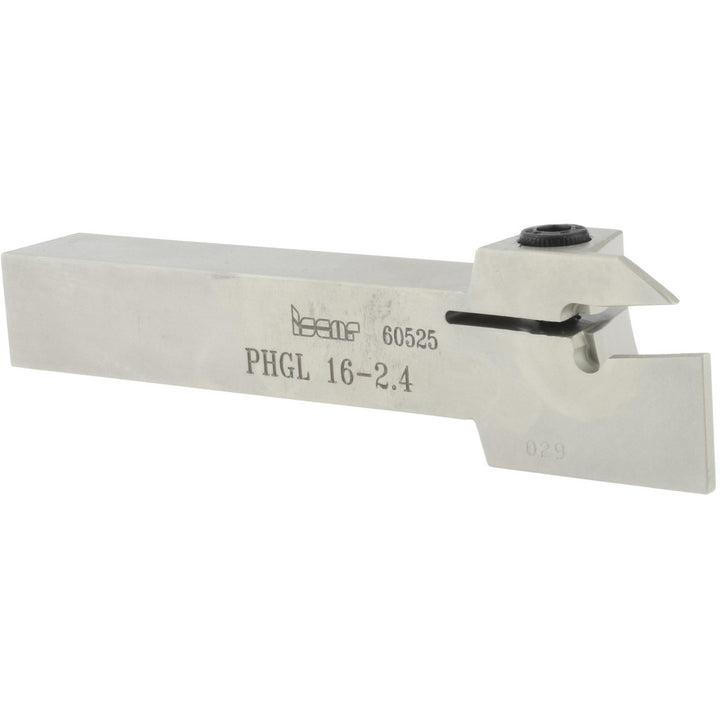

Indexable Grooving - Iscar 2800721
MFR# 2800721Series Cut Grip
$171.70List $177.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800721 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.5945
Compatible insert size codeGDMW 2.4
Complete insert compatibilityGDMW 2.4
Coolant throughNo
Hand of holderLeft Hand
Head length1.299
Insert compatibilityGDMW 2.4
Insert holding methodClamp
Maximum depth of cut0.6693
Maximum groove width0.1252
Maximum workpiece diameter1.3386
Minimum groove width0.0945
Multi use toolYes
Overall length4.3307
Primary workpiece materialUniversal
Shank height0.6299
Shank length3.0317
Toolholder stylePHG
Toolholder typeExternal Grooving
