Iscar

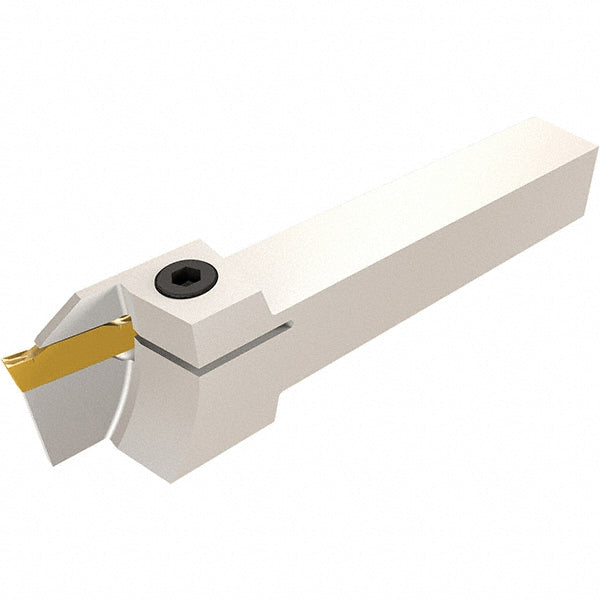

Indexable Grooving - Iscar 2800724
MFR# 2800724Series Cut Grip
$206.18List $212.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800724 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.9488
Compatible insert size codeGDMW 2.4
Complete insert compatibilityGDMW 2.4
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length (mm)33.00
Insert compatibilityGDMW 2.4
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6693
Maximum groove width0.1252
Maximum workpiece diameter1.3386
Minimum groove width0.0945
Multi use toolYes
Overall length5.5118
Primary workpiece materialUniversal
Shank height0.9843
Shank length (mm)107.00
Shank width diameter0.9843
StandardsISO 13399
Toolholder stylePHG
Toolholder typeNon-Face Grooving
