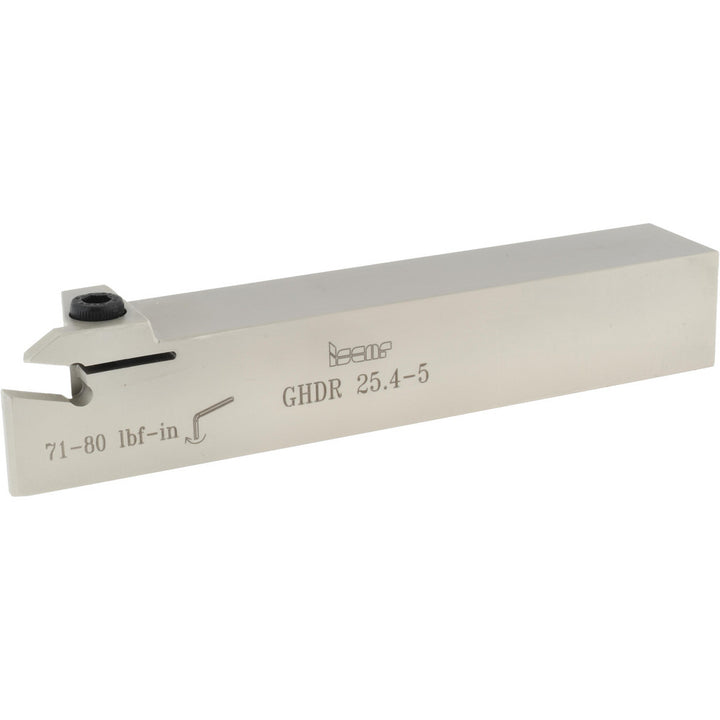

Indexable Grooving - Iscar 2800739

Iscar

Indexable Grooving - Iscar 2800739

MFR# 2800739Series Cut Grip

$206.18List $212.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800739 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9200
Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius ); GIP (Full
Complete insert compatibilityGIF 5.00E-0.40; GIF 5.00E-0.60; GIF 5.00E-0.80; GIF 5.28-0.20; GIF 5.39-0.20; GIF 5.90-0.20; GIF 6.00E-0.40; GIF 6.00E-0.80; GIF 6.35-0.50; GIF 6.35-0.55; GIM 5C; GIM 6C; GIMF 502; GIMF 508; GIMF 605; GIMF 608; GIP 5.00-0.40; GIP 6.00-0.40; GIP 6.00-0.80
Coolant throughNo
Hand of holderRight Hand
Head length1.2
Insert compatibilityGI..
Insert holding methodClamp
Maximum depth of cut0.5000
Maximum groove width0.2520
Minimum groove width0.1970
Multi use toolYes
Overall length6
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.8000
Toolholder styleGHD
Toolholder typeExternal Grooving
