Iscar

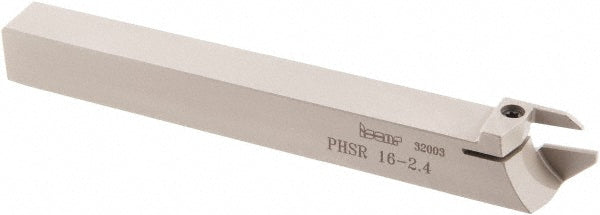

Indexable Grooving - Iscar 2800743
MFR# 2800743Series Cut Grip
$244.81List $252.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800743 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.5940
Compatible insert size codeGDMW 2.4
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length0.9500
Insert compatibilityGDMW 2.4
Insert holding methodScrew
Insert seat size2.4
Internal or externalExternal
Maximum depth of cut0.6250
Maximum groove width0.1250
Maximum workpiece diameter1.2600
Minimum groove width0.0940
Msc manufacturer numberPHSR/L 16-2.4
Multi use toolYes
Overall length5.9000
Primary workpiece materialUniversal
Shank height0.6300
Shank length4.9500
Shank width diameter0.6300
StandardsISO 13399
Toolholder materialSteel
Toolholder stylePHS
Toolholder typeNon-Face Grooving
