Iscar

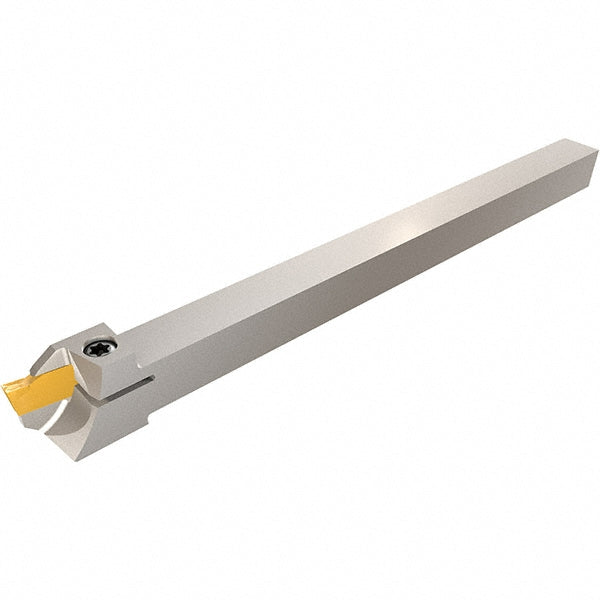

Indexable Grooving - Iscar 2800745

MFR# 2800745Series Cut Grip

$228.54List $236.00 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800745 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge1.1700

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGIF 5.00E-0.40; GIF 5.00E-0.60; GIF 5.00E-0.80; GIF 5.28-0.20; GIF 5.39-0.20; GIF 5.90-0.20; GIF 6.00E-0.40; GIF 6.00E-0.80; GIF 6.35-0.50; GIF 6.35-0.55; GIM 5C; GIM 6C; GIMF 502; GIMF 508; GIMF 605; GIMF 608; GIP 5.00-0.40; GIP 6.00-0.40; GIP 6.00-0.80

Coolant throughNo

Cutting directionRight Hand

Hand of holderRight Hand

Head length1.2000

Insert compatibilityGI..

Insert holding methodClamp

Internal or externalExternal

Maximum depth of cut0.5000

Maximum groove width0.2520

Minimum groove width0.1970

Multi use toolYes

Overall length7.0000

Primary workpiece materialUniversal

Shank height1.2500

Shank length5.8000

Shank width diameter1.2500

StandardsISO 13399

Toolholder styleGHD

Toolholder typeNon-Face Grooving
