Iscar

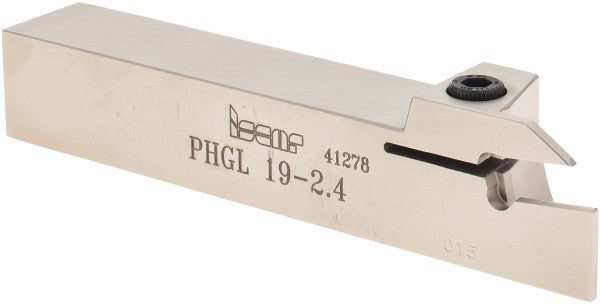

Indexable Grooving - Iscar 2800751
MFR# 2800751Series Cut Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800751 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Back of bar to cutting edge0.7100
Compatible insert size codeGDMW 2.4
Complete insert compatibilityGDMW 2.4
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.3000
Insert compatibilityGDMW 2.4
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6700
Maximum groove width in1/8
Maximum workpiece diameter1.3400
Minimum groove width0.0940
Multi use toolYes
Overall length4.5000
Primary workpiece materialUniversal
Shank height0.7500
Shank length3.2000
Shank width diameter0.7500
StandardsISO 13399
Toolholder stylePHG
Toolholder typeNon-Face Grooving
