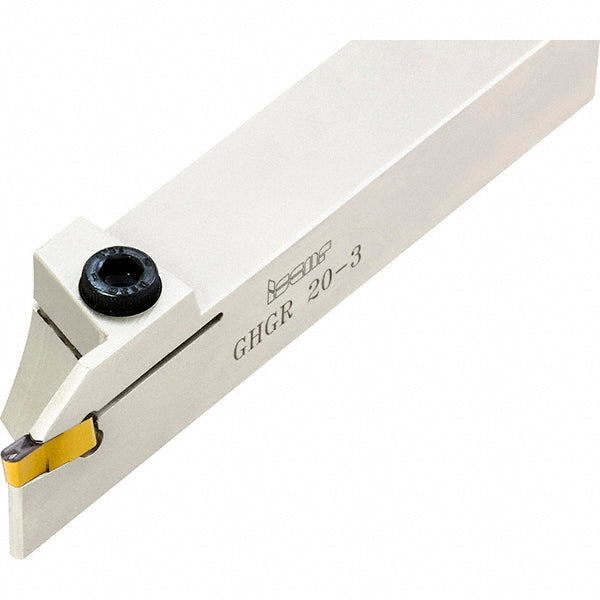

Indexable Grooving - Iscar 2800781

Iscar

Indexable Grooving - Iscar 2800781

MFR# 2800781Series Cut Grip

$245.88List $253.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800781 indexable grooving. Series Cut Grip.

Specifications

Back of bar to cutting edge1.1500
Compatible insert size codeGIA-K; GIF; GIF-E; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY-F; GIP; GIP-E; GIPA; GIPM-A46 / GIP-1250; GIPY; GITM; TIP-MT; TIP-P-BSPT; TIP-P-BSW; TIP-P-ISO; TIP-P-NPT; TIP-P-UN; TIP-WT
Complete insert compatibilityGIF 6.00E-0.40; GIF 6.00E-0.80; GIF 6.00E-1.20; GIF 6.35-0.50; GIF 6.35-0.55; GIM 6C; GIMF 605; GIMF 608; GIMF 808; GIMY 808
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length2.0000
Insert compatibilityGI..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.2600
Maximum groove width0.3150
Minimum groove width0.2360
Overall length7.0000
Shank height1.2500
Shank length5.0000
Shank width diameter in1-1/4
StandardsISO 13399
Toolholder styleGHG
