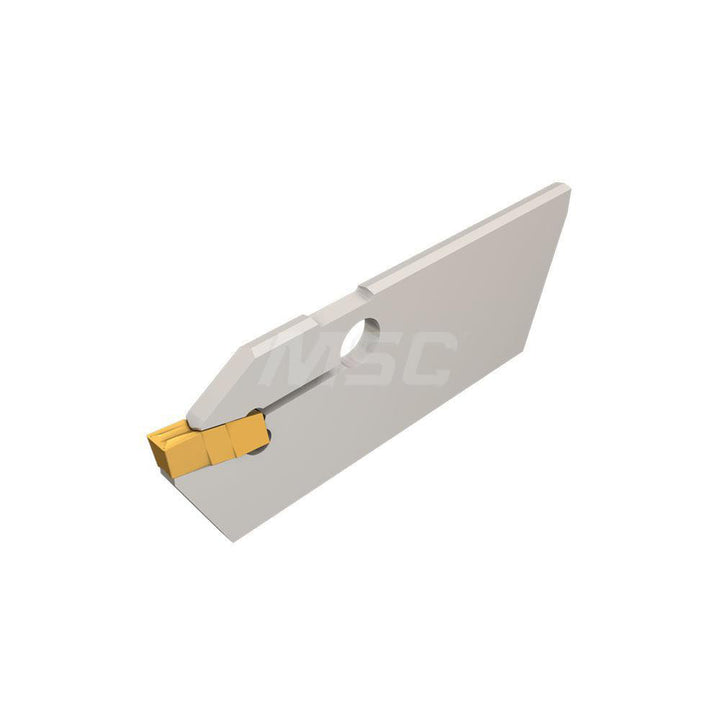

Indexable Grooving - Iscar 2800806

Iscar

Indexable Grooving - Iscar 2800806

MFR# 2800806Series Cut Grip

$117.86List $121.70 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2800806 indexable grooving. Series Cut Grip.

Specifications

Blade height1.2598
Blade styleCGHN
Blade width0.0945
Compatible insert styleGIA-K (W=3-6); GIF; GIF-E (W=4-6 Full Radius); GIF-E (W=4-6); GIM-C; GIMF; GIM-J; GIM-J-RA/LA; GIMN; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius); GIPA (round W=3-6); GIPA (W=3-6); GIP-E; GIP-E (Full Radius)
Complete insert compatibilityGIF 4.00E-2.00; GIM 3UT-1.5RA; GIMN 302; GIMN 406; GIMY 315; GIMY 420; GITM 3.00K-1.50; GITM 4.00K-2.00
Cutting directionNeutral
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut0.7480
Maximum groove width0.1575
Minimum groove width0.1102
Overall length3.2283
StandardsISO 13399
