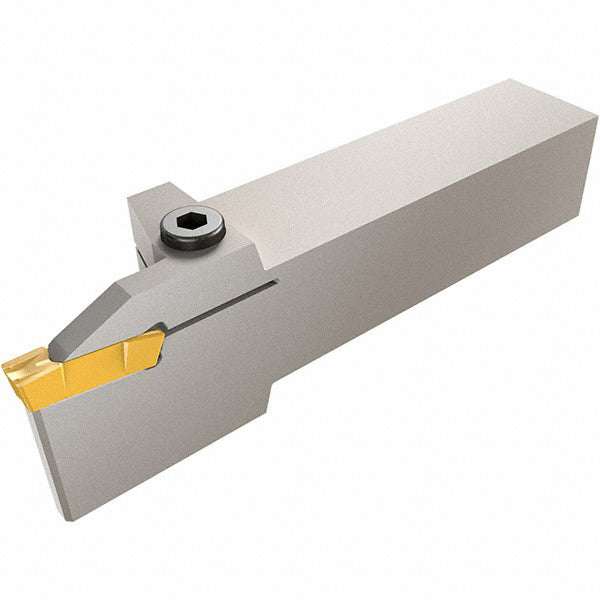

Indexable Grooving - Iscar 2800811

MFR# 2800811Series Cut Grip

$278.32List $287.40 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2800811 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge1.1300

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-0.40; GIF 8.00E-0.80; GIF 8.00E-1.20

Coolant throughNo

Cutting directionLeft Hand

Hand of holderLeft Hand

Head length2.1000

Insert compatibilityGDM.. 808; GI.. 8..

Insert holding methodClamp

Internal or externalExternal

Maximum depth of cut1.4400

Maximum groove width0.3260

Minimum groove width0.2750

Multi use toolYes

Overall length7.0000

Primary workpiece materialUniversal

Shank height1.2500

Shank length4.9000

Shank width diameter1.2500

StandardsISO 13399

Toolholder styleGHD

Toolholder typeNon-Face Grooving
