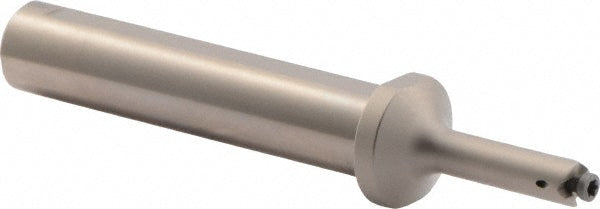

Indexable Grooving - Iscar 2800920
MFR# 2800920Cat# MG 12.7-08C23Series Cham Groove
$215.38List $222.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800920 indexable grooving. Suited for universal. Series Cham Groove.
Specifications
Center to cutting edge0.1900
Compatible insert size codeGIQR/L 11; GIQR/L 11-15; GIQR/L 11-15-R; GIQR/L 11-R; GIQR/L 8; GIQR/L 8-R; GIQR/L-A18; GIQR/L-B18; GIQR/L-MT; GIQR/L-WT
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.6410
Head length0.9100
Insert compatibilityGIQR/L 8
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberMG 12.7-08C23
Maximum depth of cut0.0590
Maximum groove width0.1180
Minimum groove width0.0200
Minimum hole diameter0.3150
Multi use toolNo
Overall length3.6200
Primary workpiece materialUniversal
Shank height0.4300
Shank length2.7100
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleMG
Toolholder typeNon-Face Grooving
