Iscar

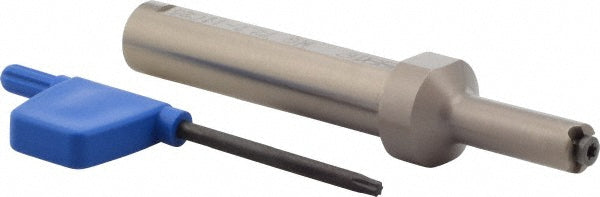

Indexable Grooving - Iscar 2800927
MFR# 2800927Cat# MG 12.7-11C25Series Cham Groove
$215.38List $222.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2800927 indexable grooving. Suited for universal. Series Cham Groove.
Specifications
Center to cutting edge0.2600
Compatible insert size codeGIQR/L 11; GIQR/L 11-15; GIQR/L 11-15-R; GIQR/L 11-R; GIQR/L 8; GIQR/L 8-R; GIQR/L-A18; GIQR/L-B18; GIQR/L-MT; GIQR/L-WT
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.6410
Head length0.9800
Insert compatibilityGIQR/L 11
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberMG 12.7-11C25
Maximum depth of cut0.0900
Maximum groove width0.1180
Minimum groove width0.0200
Minimum hole diameter0.4330
Multi use toolNo
Overall length3.6200
Primary workpiece materialUniversal
Shank height0.4300
Shank length2.6400
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleMG
Toolholder typeNon-Face Grooving
