Iscar

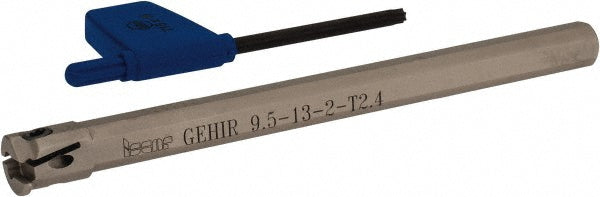

Indexable Grooving - Iscar 2801048
MFR# 2801048Series Cut Grip
$242.78List $250.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801048 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.3000
Compatible insert size codeGEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WT
Complete insert compatibilityGEMI; GEPI
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length0.7900
Insert compatibilityGEMI..; GEPI..
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.0940
Maximum groove width0.0950
Minimum groove width0.0750
Minimum hole diameter0.4920
Msc manufacturer numberGEHIR/L 9.5-13-2-T2.4
Multi use toolNo
Overall length5.0000
Primary workpiece materialUniversal
Shank length4.2100
Shank width diameter0.3750
StandardsISO 13399
Toolholder styleGEHI
Toolholder typeNon-Face Grooving
