Iscar

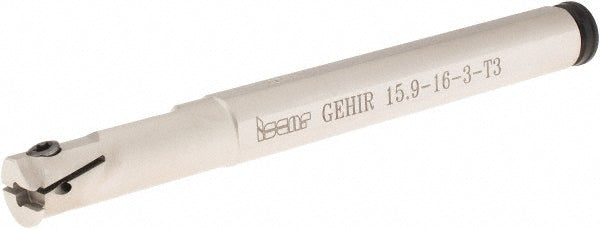

Indexable Grooving - Iscar 2801056
MFR# 2801056Series Fix-Grip
$271.26List $280.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801056 indexable grooving. Suited for universal. Series Fix-Grip.
Specifications
Center to cutting edge0.4300
Compatible insert size codeGEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WT
Complete insert compatibilityGEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.10; GEPI 2.50-0.20; GEPI 2.70-0.20; GEPI 3.00-0.20; GEPI 3.00-1.50; GEPI 3.18-1.59
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityGE.I
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.1180
Maximum groove width0.1260
Minimum groove width0.0950
Minimum hole diameter0.6300
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank width diameter0.6250
StandardsISO 13399
Toolholder styleGEHI
Toolholder typeNon-Face Grooving
