Iscar

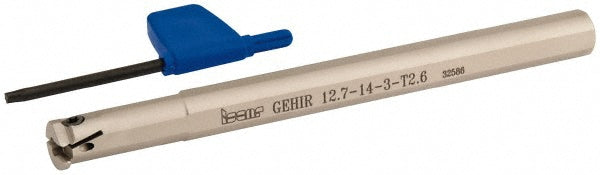

Indexable Grooving - Iscar 2801139
MFR# 2801139Series Cut Grip
$254.69List $263.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801139 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.3600
Compatible insert size codeGEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WT
Complete insert compatibilityGEMI; GEPI
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.3800
Insert compatibilityGEMI..; GEPI..
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.1020
Maximum groove width0.1260
Minimum groove width0.0950
Minimum hole diameter0.5510
Msc manufacturer numberGEHIR/L 12.7-14-3-T2.6
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank length4.6200
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleGEHI
Toolholder typeNon-Face Grooving
