Iscar

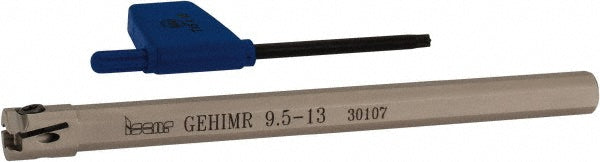

Indexable Grooving - Iscar 2801191
MFR# 2801191Series Cut Grip
$242.78List $250.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801191 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.3000
Compatible insert size codeGEPI; GEPI (W
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityGEPI..
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.0980
Maximum groove width0.0750
Minimum groove width0.0310
Minimum hole diameter0.4920
Msc manufacturer numberGEHIMR/L 9.5-13
Multi use toolNo
Overall length5.0000
Primary workpiece materialUniversal
Shank width diameter0.3750
StandardsISO 13399
Toolholder styleGEHIM
Toolholder typeNon-Face Grooving
