Iscar

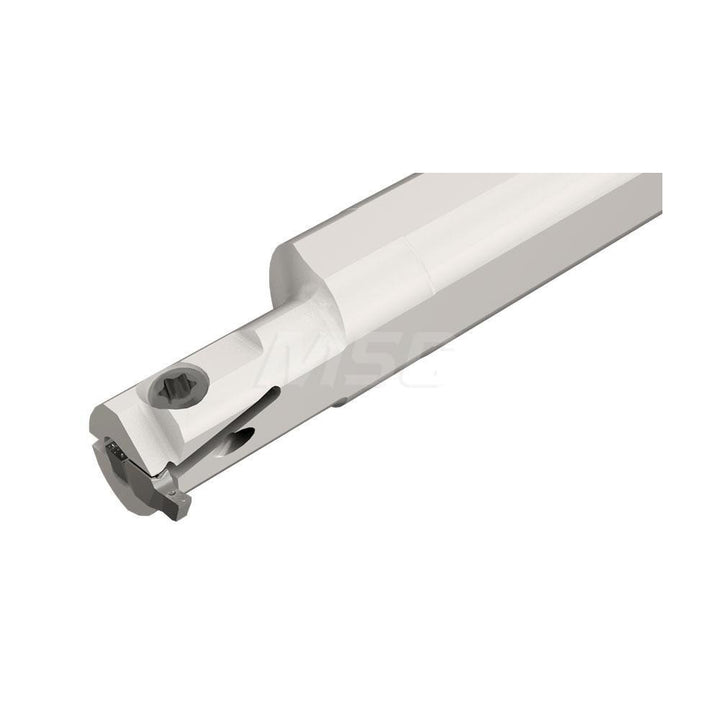

Indexable Grooving - Iscar 2801195
MFR# 2801195Cat# GEHIMR 15.9-16Series Cut Grip
$271.26List $280.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801195 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.4100
Compatible insert size codeGEPI; GEPI (W
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.5700
Insert compatibilityGEPI..
Insert holding methodClamp
Internal or externalInternal
Manufacturers catalog numberGEHIMR 15.9-16
Maximum depth of cut0.0980
Maximum groove width0.0750
Minimum groove width0.0310
Minimum hole diameter0.6300
Msc manufacturer numberGEHIMR/L 15.9-16
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
Shank length4.4300
Shank width diameter0.6250
StandardsISO 13399
Toolholder styleGEHIM
Toolholder typeNon-Face Grooving
