Iscar

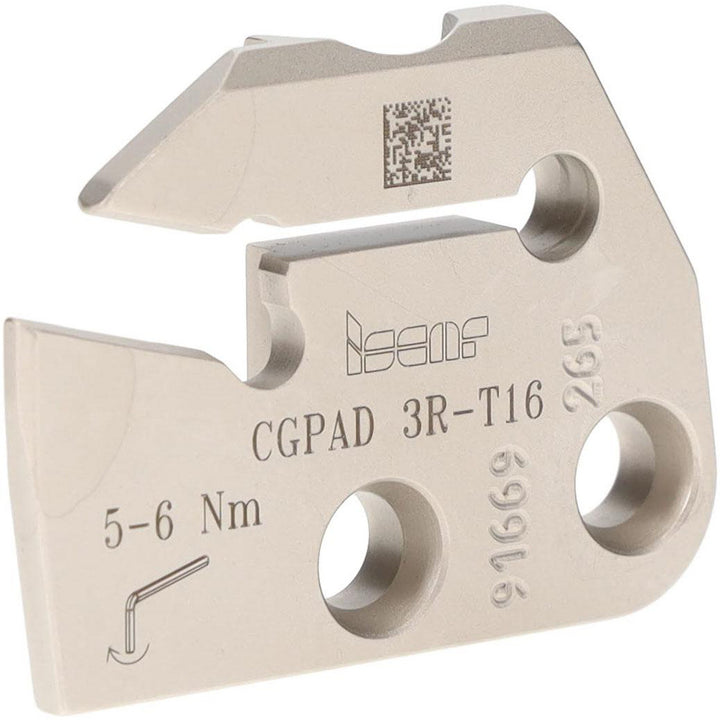

Indexable Grooving - Iscar 2801213
MFR# 2801213Cat# CGPAD 3R-T16Series Cut Grip
$153.40List $158.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801213 indexable grooving. Series Cut Grip.
Specifications
Blade height1.1811
Blade styleCGPAD
Blade width0.2047
Compatible insert styleGIF..; GIM..; GIP..; TIP..
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Manufacturers catalog numberCGPAD 3R-T16
Maximum depth of cut0.6299
Maximum groove width0.1570
Minimum groove width0.1102
Overall length1.6535
StandardsISO 13399
