Iscar

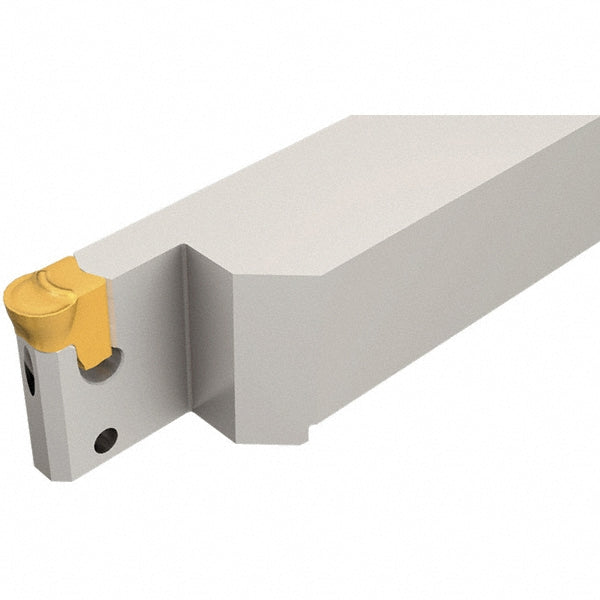

Indexable Grooving - Iscar 2801587
MFR# 2801587Series Sumo-Grip
$299.72List $309.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801587 indexable grooving. Series Sumo-Grip.
Specifications
Back of bar to cutting edge0.8300
Compatible insert size codeTAG N-C/W/M; TAGB/TAGBA
Complete insert compatibilityTAG N-C/W/M; TAGB/TAGBA
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Insert compatibilityTAG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut (mm)25.00
Maximum groove width (mm)10.00
Overall length (mm)150.00
Shank height (mm)25.00
Shank width diameter (mm)25.00
StandardsISO 13399
Toolholder styleTGBH
