Iscar

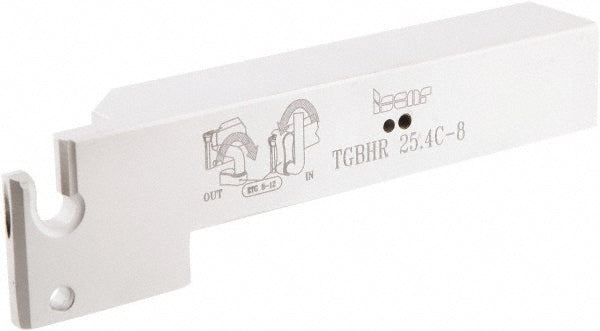

Indexable Grooving - Iscar 2801592
MFR# 2801592Cat# TGBHR 25.4C-8Series Sumo-Grip
$289.45List $293.70
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801592 indexable grooving. Suited for universal. Series Sumo-Grip.
Specifications
Back of bar to cutting edge0.8600
Compatible insert size codeTAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS; TAGB/TAGBA
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityTAG N 8..C/W/M; TAGB/TAGBA 8..
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberTGBHR 25.4C-8
Maximum depth of cut0.9800
Maximum groove width0.3150
Minimum groove width0.3150
Msc manufacturer numberTGBHR/L 25.4C-8
Multi use toolYes
Overall length5.9000
Primary workpiece materialUniversal
Shank height in1
Shank width diameter in1
StandardsISO 13399
Toolholder materialSteel
Toolholder styleTGBH
Toolholder typeNon-Face Grooving
