Iscar

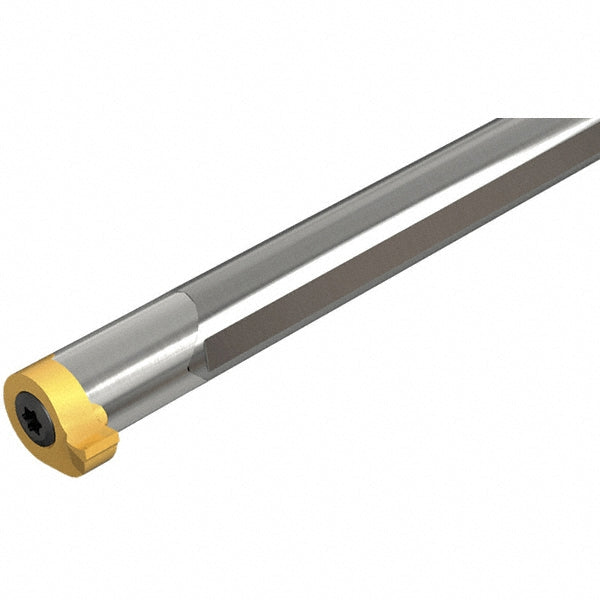

Indexable Grooving - Iscar 2801629
MFR# 2801629Cat# MGCH 08CSeries Cham Groove
$285.01List $294.30
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801629 indexable grooving. Suited for universal. Series Cham Groove.
Specifications
Compatible insert size codeGIQR/L 11/11-15
Complete insert compatibilityGIQR/L 11; GIQR/L 11-15; GIQR/L 11-15-R; GIQR/L-11-R; GIQR/L-A18; GIQR/L-B18; GIQR/L-MT; GIQR/L-WT
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityGIQ..
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberMGCH 08C
Maximum groove width (mm)5.00
Minimum groove width (mm)0.50
Multi use toolYes
Overall length (mm)76.00
Primary workpiece materialUniversal
Shank width diameter (mm)8.00
StandardsISO 13399
Toolholder materialSolid Carbide
Toolholder styleMGCH
Toolholder typeNon-Face Grooving
