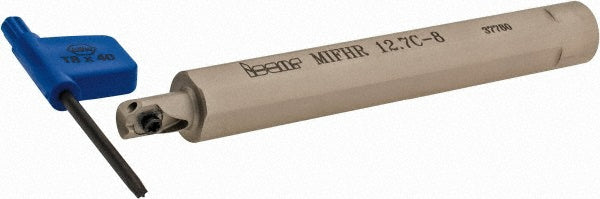

Indexable Grooving - Iscar 2801631

Iscar

Indexable Grooving - Iscar 2801631

MFR# 2801631Series Min Cut

$244.81List $252.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2801631 indexable grooving. Suited for universal. Series Min Cut.

Specifications

Center to cutting edge0.0550
Compatible insert size codeMEFL; MIFR; MIGR 8; MITR 8-MT; MIUR 8
Complete insert compatibilityMIFR 10-2.00-1.00; MIFR 10-2.50-0.20; MIFR 10-3.00-0.20; MIFR 10-3.00-1.50; MIFR 8-1.50-0.20; MIFR 8-1.60-0.80; MIFR 8-2.00-0.20; MIFR 8-2.20-0.20; MIGR 8-0.50-0.00; MIGR 8-1.00-0.05; MIGR 8-1.20-0.05; MIGR 8-1.20-0.60; MIGR 8-1.50-0.05; MIGR 8-1.60-0.80
Coolant hole diameter0.2030
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length0.4920
Insert compatibilityMI.R 10..; MI.R 8..
Insert holding methodScrew
Internal or externalInternal
Maximum bore depth0.4920
Maximum depth of cut0.4920
Multi use toolYes
Overall length4.0300
Primary workpiece materialUniversal
Shank length4.5220
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleMIFH
Toolholder typeNon-Face Grooving
