Iscar

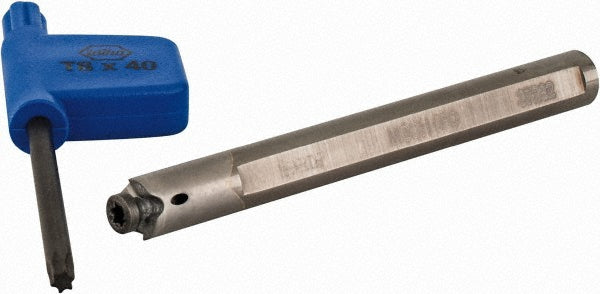

Indexable Grooving - Iscar 2801658
MFR# 2801658Series Cham Groove
$285.01List $294.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801658 indexable grooving. Suited for universal. Series Cham Groove.
Specifications
Center to cutting edge0.1890
Compatible insert size codeGIQR/L 8
Complete insert compatibilityGIQL 11-0.75-0.00; GIQL 11-0.85-0.00; GIQL 11-0.95-0.00; GIQL 11-1.04-0.05; GIQL 11-1.20-0.05; GIQL 11-1.20-R060; GIQL 11-1.40-0.05; GIQL 11-1.50-0.05; GIQL 11-1.70-0.05; GIQL 11-1.80-R090; GIQL 11-1.96-0.10; GIQL 11-15-1.50-0.05; GIQL 11-15-2.00-0.10
Coolant throughYes
Insert compatibilityGIQ..
Insert holding methodScrew
Internal or externalInternal
Maximum depth of cut0.0591
Maximum groove width0.1575
Minimum groove width0.0197
Minimum hole diameter0.3150
Multi use toolYes
Overall length2.4409
Primary workpiece materialUniversal
Shank width diameter0.2362
StandardsISO 13399
Toolholder materialSolid Carbide
Toolholder styleMGCH
Toolholder typeNon-Face Grooving
