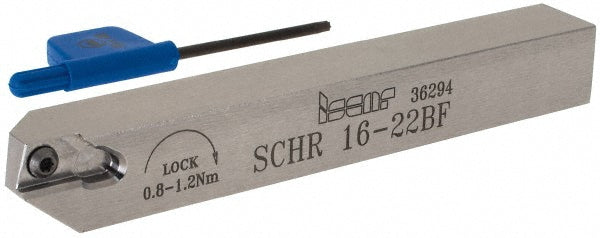

Indexable Grooving - Iscar 2801684

Iscar

Indexable Grooving - Iscar 2801684

MFR# 2801684Series Swisscut

$140.22List $144.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2801684 indexable grooving. Suited for universal. Series Swisscut.

Specifications

Compatible insert size codeSCIR-22-MTR-ISO; SCIR/L 22 BR/BL/BRA/BLA; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AD; SCIR/L-22-AR/AL; SCIR/L-22-MTR/MTL; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-NX
Complete insert compatibilitySCIR 22-050N-00; SCIR 22-050R12-00; SCIR 22-100N-00; SCIR 22-150N-00; SCIR 22-150NP05; SCIR 22-200N-10; SCIR 22-200NP05; SCIR 22-250NP05; SCIR 22-AR00-25K16; SCIR 22-AR10-25K8; SCIR 22-BR00-05K7; SCIR 22-BR10-05K7; SCIR 22-EL00-07K0; SCIR 22-ER00-07K0
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilitySCIR 22
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3150
Maximum groove width0.0980
Minimum groove width0.0200
Multi use toolYes
Overall length4.9210
Primary workpiece materialUniversal
Shank height0.6300
Shank width diameter0.6300
StandardsISO 13399
Toolholder styleSCH
Toolholder typeNon-Face Grooving
