Iscar

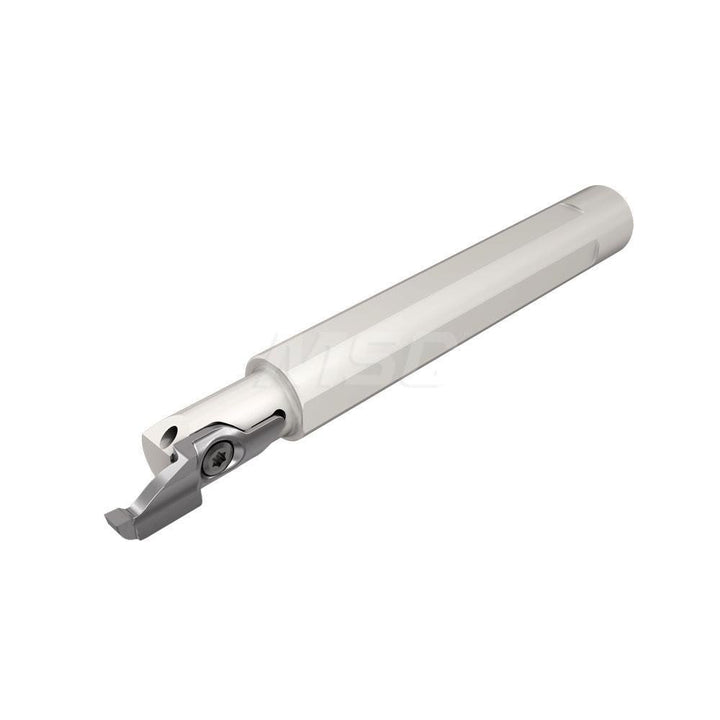

Indexable Grooving - Iscar 2801704
MFR# 2801704Cat# MIFHR 12C-10Series Min Cut
$249.15List $252.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801704 indexable grooving. Suited for universal. Series Min Cut.
Specifications
Center to cutting edge (mm)2.40
Compatible insert size codeMEFL; MIFR; MIGR 8; MITR 8-MT; MIUR 8
Complete insert compatibilityMIFR
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length (mm)17.20
Insert compatibilityMIFR
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberMIFHR 12C-10
Maximum depth of cut (mm)17.20
Multi use toolYes
Overall length (mm)90.00
Primary workpiece materialUniversal
Shank length (mm)72.80
Shank width diameter (mm)12.00
StandardsISO 13399
Toolholder styleMIFHR
Toolholder typeNon-Face Grooving
