Iscar

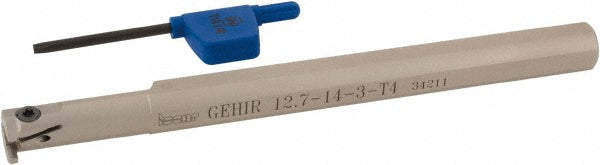

Indexable Grooving - Iscar 2801776
MFR# 2801776Cat# GEHIR 12.7-14-3-T4Series Cut Grip
$271.92List $275.90
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801776 indexable grooving. Suited for universal. Series Cut Grip.
Specifications
Center to cutting edge0.4100
Compatible insert size codeGEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WT
Complete insert compatibilityGEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.10; GEPI 2.50-0.20; GEPI 2.70-0.20; GEPI 3.00-0.20; GEPI 3.00-1.50; GEPI 3.18-1.59
Coolant hole diameter0.1570
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityGEMI..; GEPI..
Insert holding methodClamp
Manufacturers catalog numberGEHIR 12.7-14-3-T4
Maximum bore depth0.1570
Maximum depth of cut0.1570
Maximum groove width0.1260
Minimum groove width0.0950
Minimum hole diameter0.5510
Msc manufacturer numberGEHIR/L 12.7-14-3T4
Multi use toolNo
Overall length6
Primary workpiece materialUniversal
Toolholder materialSteel
Toolholder styleGEHI
