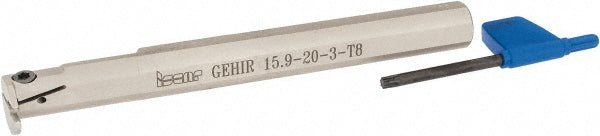

Indexable Grooving - Iscar 2801780

MFR# 2801780Series Cut Grip

$271.26List $280.10 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2801780 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Center to cutting edge0.6400
Compatible insert size codeGEMI; GEMI (Full Radius); GEPI; GEPI (Full Radius); GEPI-MT; GEPI-WT
Complete insert compatibilityGEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.10; GEPI 2.50-0.20; GEPI 2.70-0.20; GEPI 3.00-0.20; GEPI 3.00-1.50; GEPI 3.18-1.59
Coolant hole diameter (mm)6.00
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityGEMI..; GEPI..
Insert holding methodClamp
Maximum bore depth0.3150
Maximum depth of cut0.1570
Maximum groove width0.1260
Minimum bore diameter0.7870
Minimum groove width0.0950
Minimum hole diameter0.7870
Msc manufacturer numberGEHIR/L 15.9-20-3-T8
Multi use toolNo
Overall length6.0000
Primary workpiece materialUniversal
StandardsISO 13399
Toolholder styleGEHI
Toolholder typeNon-Face Grooving
