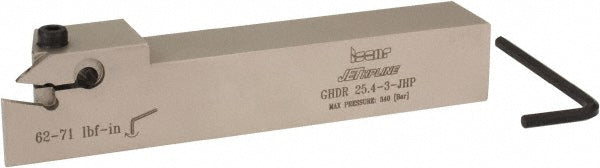

Indexable Grooving - Iscar 2801797

MFR# 2801797Series Cut Grip

$324.64List $329.40 Save 1%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2801797 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge0.9500
Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP
Complete insert compatibilityGIA-K...
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.7300
Insert compatibilityGI.., GPV.., TIP..
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.3600
Maximum groove width0.1570
Minimum groove width0.1100
Multi use toolYes
Overall length6.0000
Primary workpiece materialUniversal
Shank height1.0000
Shank length6.0000
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleGHD
Toolholder typeNon-Face Grooving
