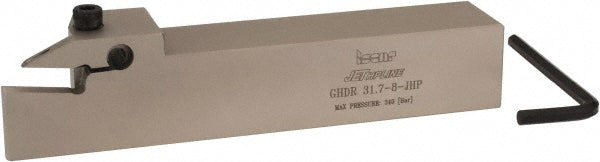

Indexable Grooving - Iscar 2801800

MFR# 2801800Series Cut Grip

$391.14List $403.90 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2801800 indexable grooving. Suited for universal. Series Cut Grip.

Specifications

Back of bar to cutting edge1.1300

Compatible insert size codeGIA-K (W=.118-.236); GIF; GIF (Full Radius); GIF-E (W=.157-.236 radius); GIF-E (W=.157-.236); GIG; GIM-C; GIM-J; GIM-J-RA/LA; GIM-UT; GIM-UT-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMT; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP

Complete insert compatibilityGDMF; GDMM-CC; GDMN; GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GIF-E (W=.315, .394 Radius); GIF-E (W=.315, .394); GIPA/GIDA 8 (Full Radius)

Coolant throughYes

Cutting directionRight Hand

Hand of holderRight Hand

Head length2.1900

Insert compatibilityGI.., GPV.., TIP..

Insert holding methodScrew

Internal or externalExternal

Maximum depth of cut1.0000

Maximum groove width0.3270

Minimum groove width0.2600

Multi use toolYes

Overall length7.0000

Primary workpiece materialUniversal

Shank height1.2500

Shank length7.0000

Shank width diameter1.2500

StandardsISO 13399

Toolholder styleGHD

Toolholder typeNon-Face Grooving
