Iscar

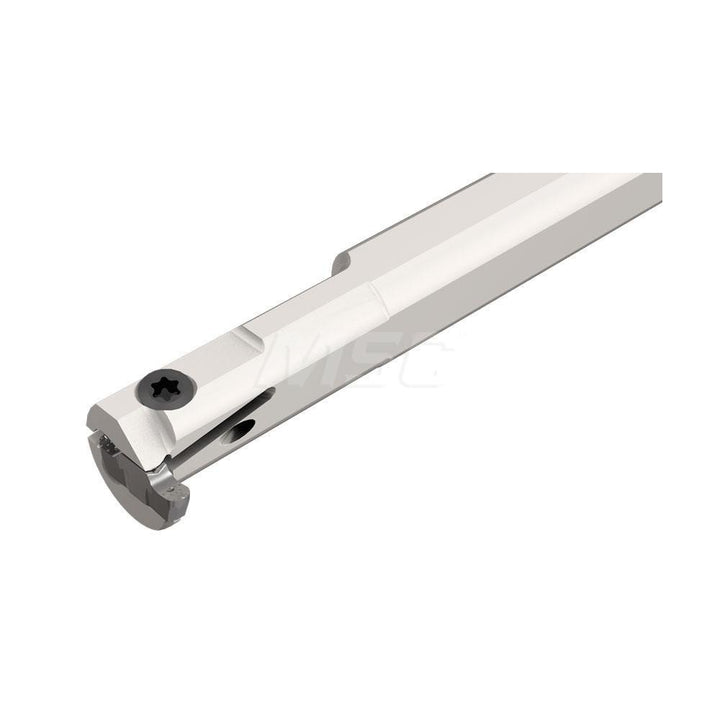

Indexable Boring - Iscar 2801897
MFR# 2801897Series Cut Grip
$267.19List $275.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2801897 indexable boring. Series Cut Grip.
Specifications
Center to cutting edge (mm)12.30
Coolant hole diameter (mm)6.00
Coolant throughYes
Cutting directionLeft Hand
Cutting tool applicationGrooving; Parting; Turning
Hand of holderLeft Hand
Insert compatibilityGE.I
Insert holding methodClamp
Maximum bore depth (mm)6.00
Minimum bore diameter (mm)15.00
Multi use toolNo
Overall length (mm)150.00
Shank diameter (mm)12.00
StandardsISO 13399
Toolholder styleGEHI
Tool materialSteel
