Iscar

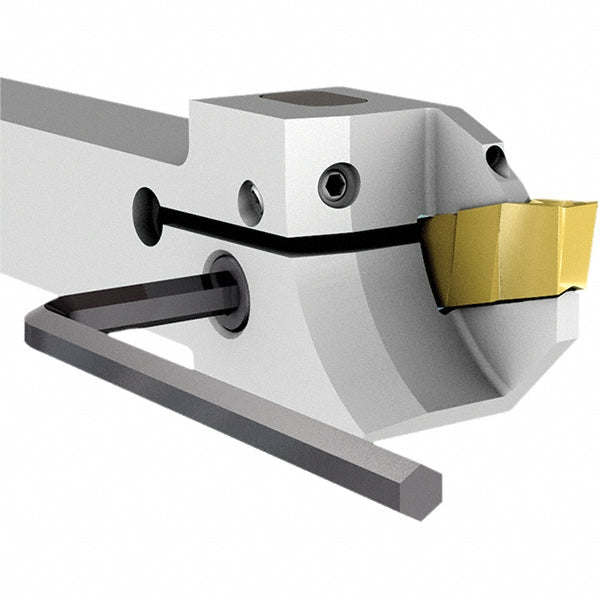

Indexable Grooving - Iscar 2801930

MFR# 2801930Series Cut Grip; Jet HP Line

$385.04List $397.60 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2801930 indexable grooving. Suited for universal. Series Cut Grip; Jet HP Line.

Specifications

Back of bar to cutting edge0.4600

Compatible insert size codeGIG; GIM-J; GIM-J-RA/LA; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP (Full Radius); GIP-E; GIP-E (Full Radius); GIPA (Full Radius W=3-6); GIPA (W=3-6); GIPM-A46/GIP-1250; GIPY; GITM; GITM (Full Radius); TIP-MT; TIP-P-BSPT; TIP-P-

Complete insert compatibilityGIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIG 1.47-0.00; GIG 1.50-0.10; GIG 1.57-0.15; GIG 1.70-0.10; GIG 1.78-0.18; GIG 1.85-0.15; GIG 1.86-0.15; GIG 1.96-0.15; GIG 2.00-0.20; GIG 2.22-0.15; GIG 2.30-0.20; GIM 2.2J; GIM 2

Coolant throughYes

Cutting directionLeft Hand

Full radius insertYes

Hand of holderLeft Hand

Head length0.9800

Insert compatibilityGI..; TIP

Insert holding methodClamp

Internal or externalExternal

Maximum groove width0.1180

Maximum workpiece diameter1.0000

Minimum groove width0.0870

Multi use toolYes

Overall length4.0000

Primary workpiece materialUniversal

Shank height0.5000

Shank length3.0200

Shank width diameter0.5000

StandardsISO 13399

Toolholder styleGHS

Toolholder typeNon-Face Grooving
