Iscar

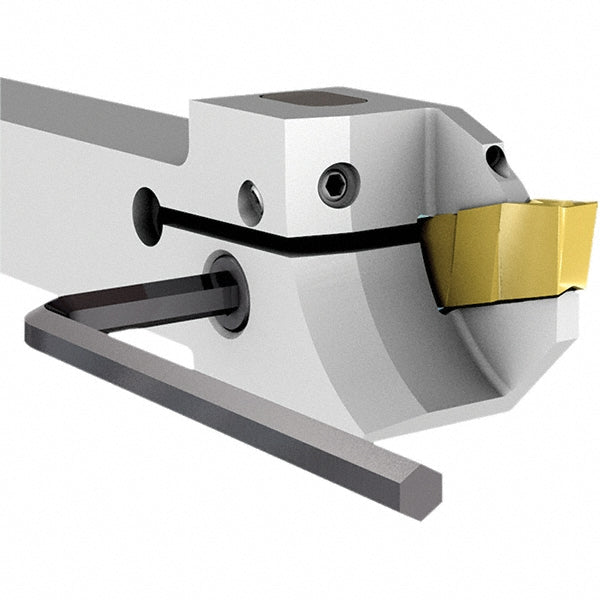

Indexable Grooving - Iscar 2801934

MFR# 2801934Series Cut Grip; Jet HP Line

$412.45List $425.90 Save 3%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Description

The Iscar 2801934 indexable grooving. Suited for universal. Series Cut Grip; Jet HP Line.

Specifications

Back of bar to cutting edge0.5800

Compatible insert size codeGIG; GIM-J; GIM-J-RA/LA; GIMY; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius WM); GIP (Full Radius); GIP-E; GIP-E (Full Radius); GIPA (Full Radius W=3-6); GIPA (W=3-6); GIPM-A46/GIP-1250; GIPY; GITM; GITM (Full Radius); TIP-MT; TIP-P-BSPT; TIP-P-

Complete insert compatibilityGIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIG 1.47-0.00; GIG 1.50-0.10; GIG 1.57-0.15; GIG 1.70-0.10; GIG 1.78-0.18; GIG 1.85-0.15; GIG 1.86-0.15; GIG 1.96-0.15; GIG 2.00-0.20; GIG 2.22-0.15; GIG 2.30-0.20; GIM 2.2J; GIM 2

Coolant throughYes

Cutting directionRight Hand

Full radius insertYes

Hand of holderRight Hand

Head length1.0600

Insert compatibilityGI..; TIP

Insert holding methodClamp

Internal or externalExternal

Maximum groove width0.1570

Maximum workpiece diameter0.9800

Minimum groove width0.1100

Multi use toolYes

Overall length4.7240

Primary workpiece materialUniversal

Shank height0.6300

Shank length3.6640

Shank width diameter0.6300

StandardsISO 13399

Toolholder styleGHS

Toolholder typeNon-Face Grooving
