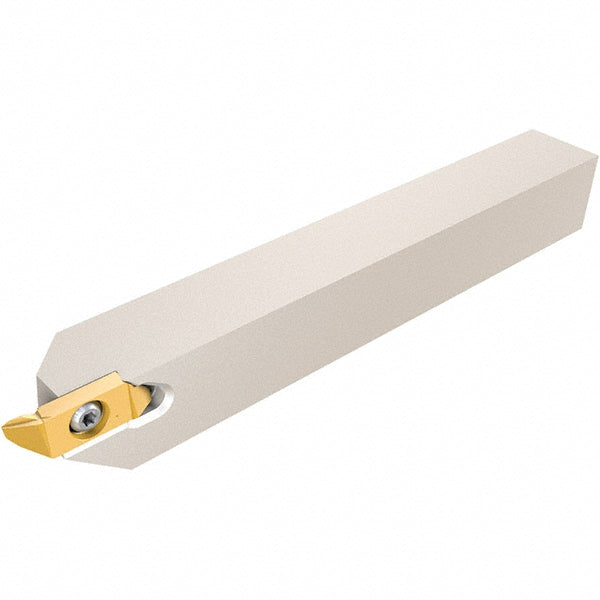

Indexable Grooving - Iscar 2802012

Iscar

Indexable Grooving - Iscar 2802012

MFR# 2802012Series Swisscut

$142.70List $144.80 Save 1%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2802012 indexable grooving. Suited for universal. Series Swisscut.

Specifications

Compatible insert size codeSCIR-22-MTR-ISO; SCIR/L 22 BR/BL/BRA/BLA; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AD; SCIR/L-22-AR/AL; SCIR/L-22-MTR/MTL; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-NX
Complete insert compatibilitySCIL 22-050L12-00; SCIL 22-050N-00; SCIL 22-050R12-00; SCIL 22-080NP00; SCIL 22-100L16-00; SCIL 22-100N-00; SCIL 22-100NP08; SCIL 22-100R16-00; SCIL 22-150L16-00; SCIL 22-150N-00; SCIL 22-150NP05; SCIL 22-150R16-00; SCIL 22-200L16-00; SCIL 22-200N-10
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Insert compatibilitySCIL 22
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3150
Maximum groove width0.0980
Minimum groove width0.0200
Multi use toolYes
Overall length4.9210
Primary workpiece materialUniversal
Shank height0.6300
Shank width diameter0.6300
StandardsISO 13399
Toolholder styleSCH
Toolholder typeNon-Face Grooving
